Update 2016-12:

Bought a DW6000 again and mod it to have a mixture of DW6000 and DW8000 waveforms.

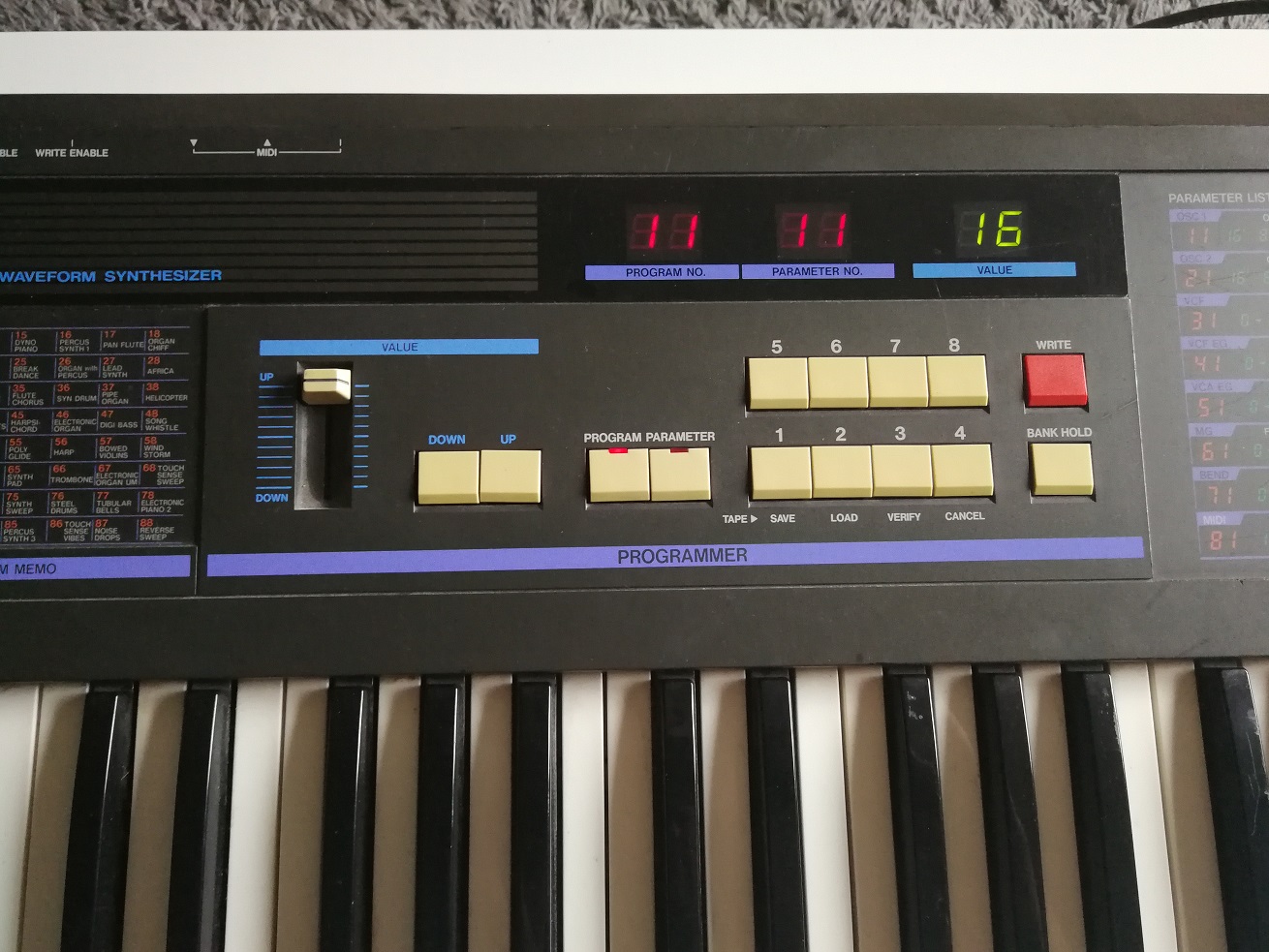

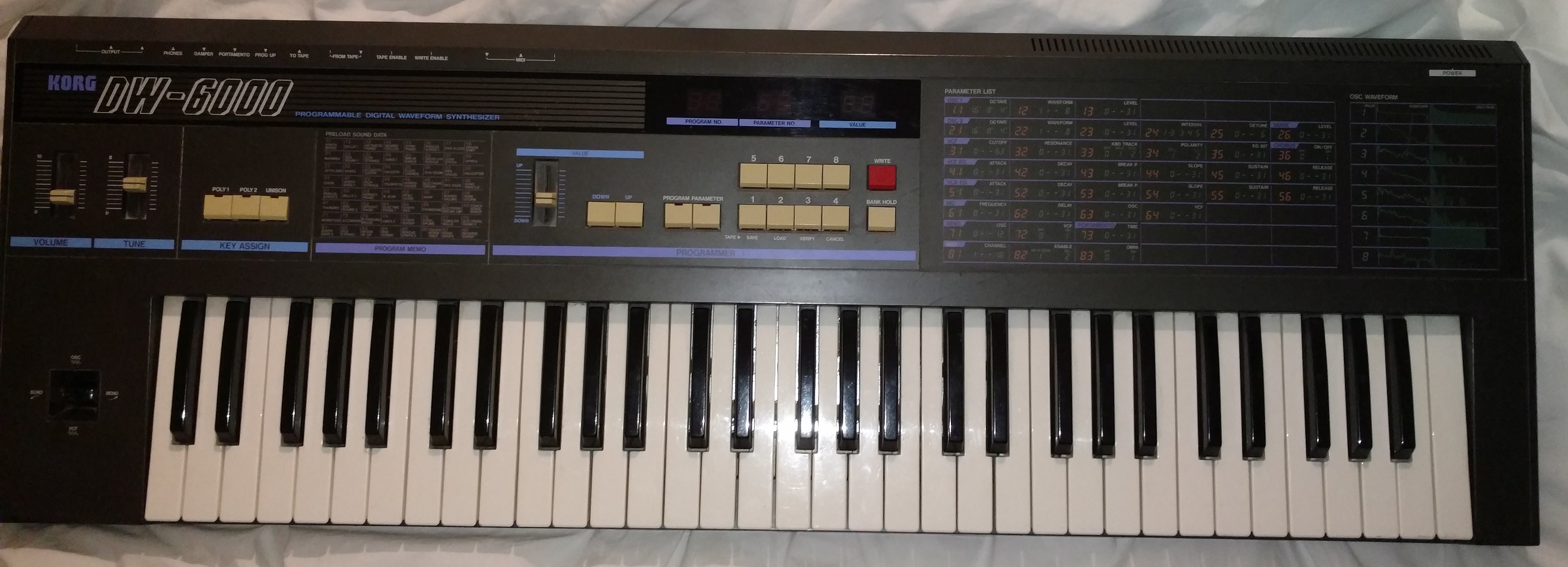

My new DW6000
My new DW6000 - closeup

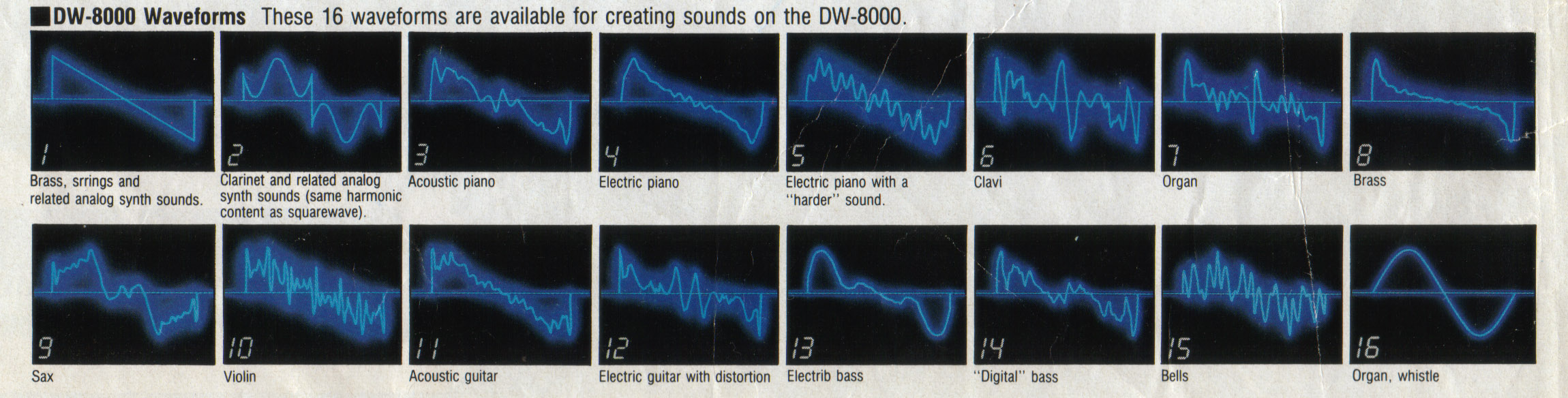

Background is that I miss saw, square and sinus from DW8000, but I like DW6000 more because of its chorus.

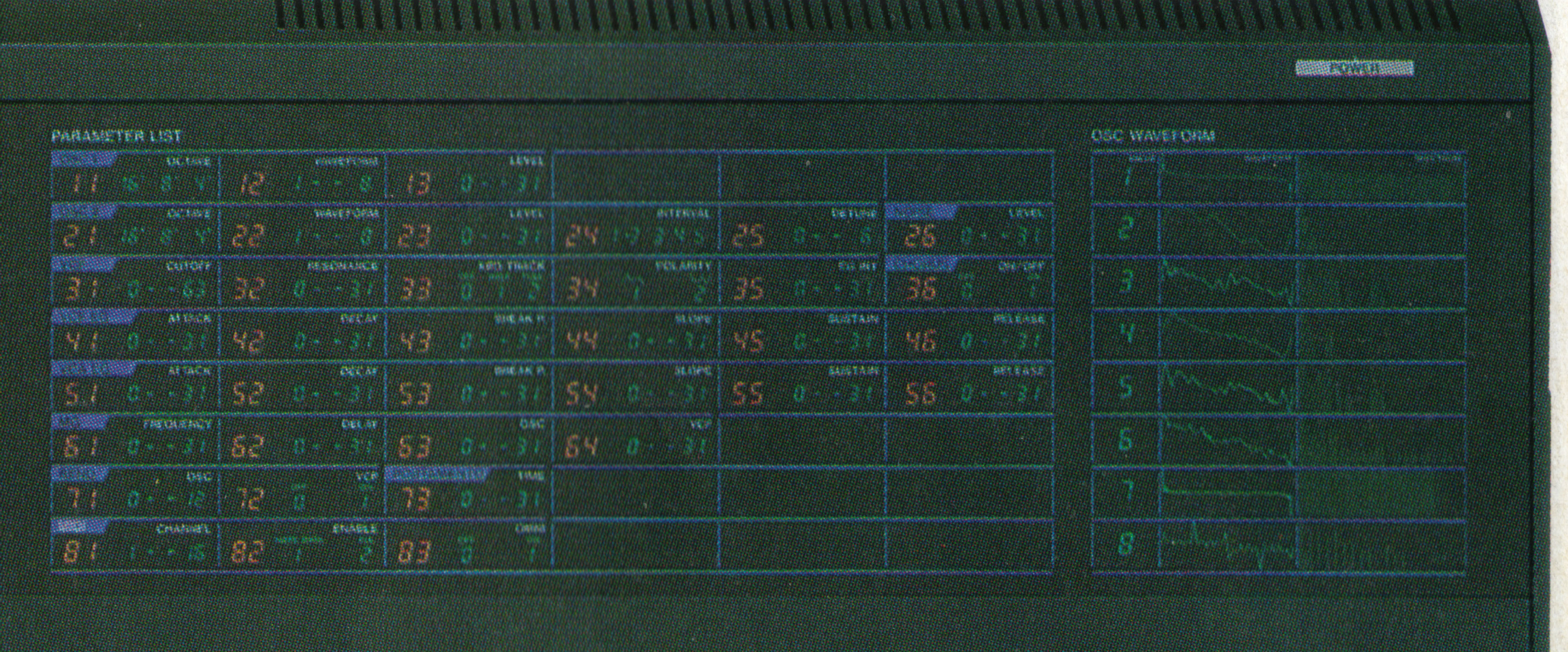

DW6000 only has 8 waveforms and DW8000 has 16.
So I made a mixture (with an hexeditor) from both machines to replace some of DW8000 waveforms with special ones that are in DW6000.

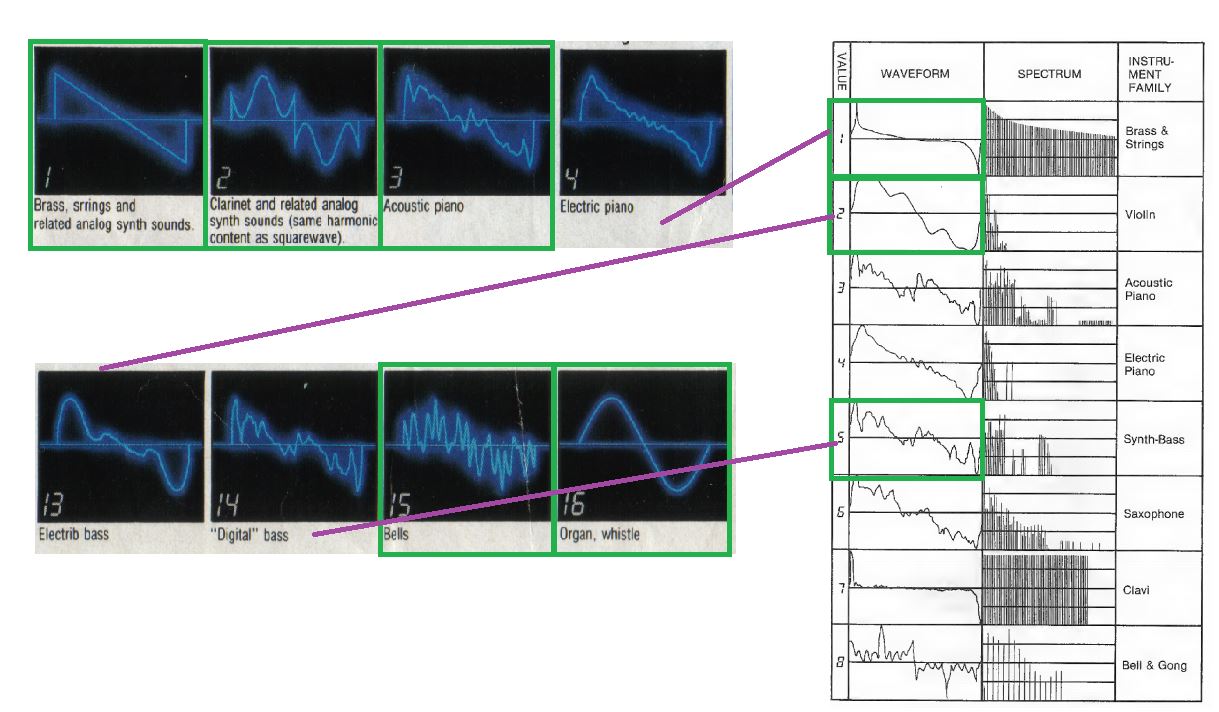

Waveform mixture

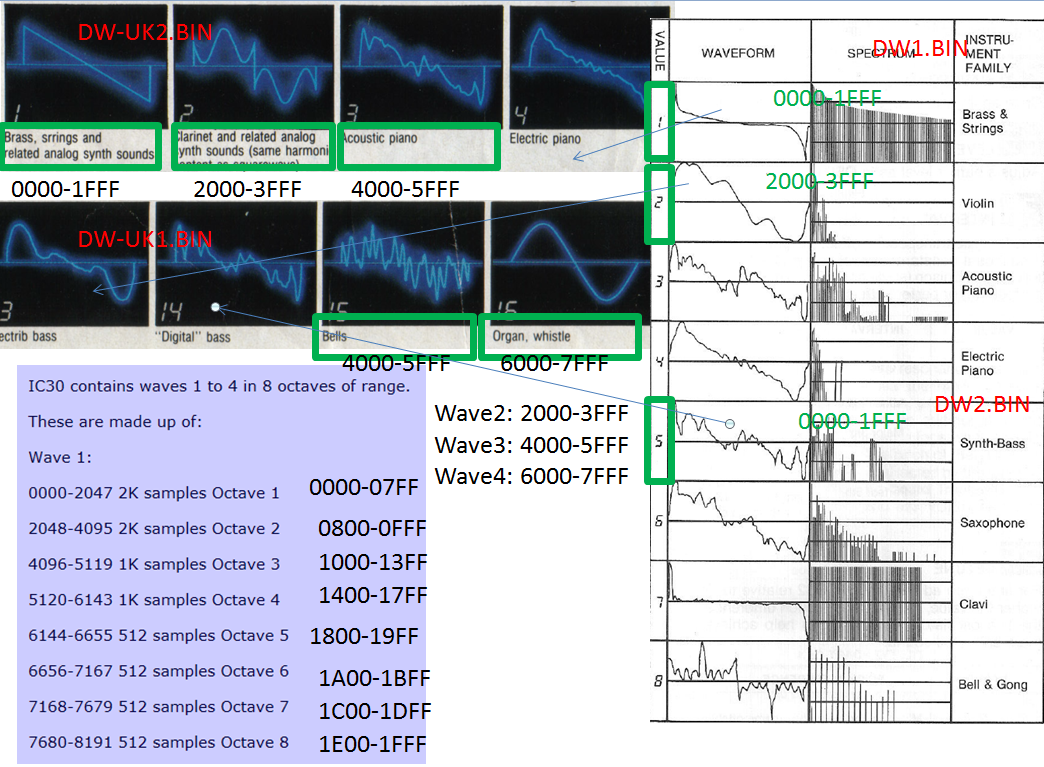

Waveform mixture - cleanup
Bin file for ROM1
Bin file for ROM2

The chip is this:
EEPROM 256kbit 28-pins

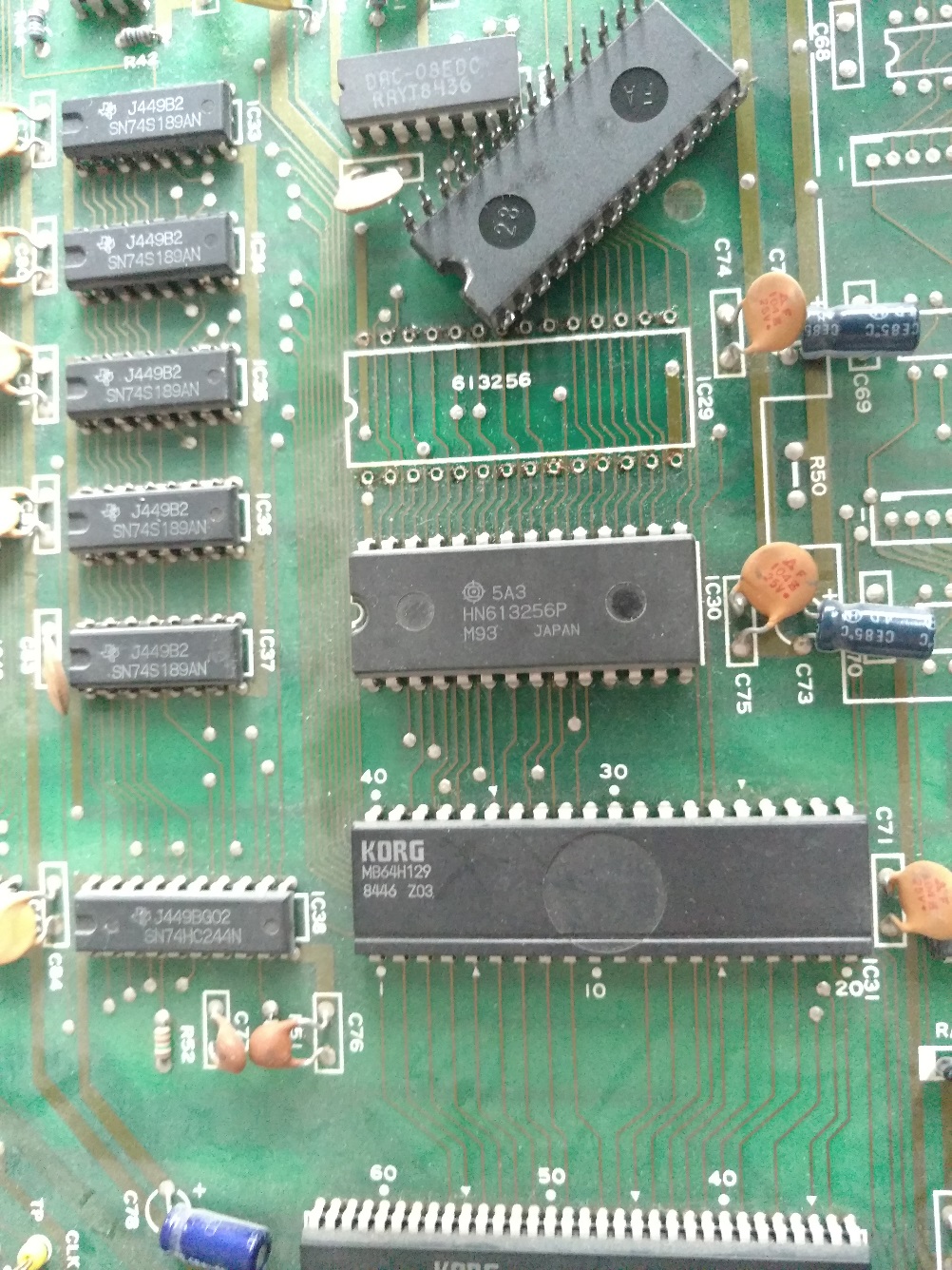

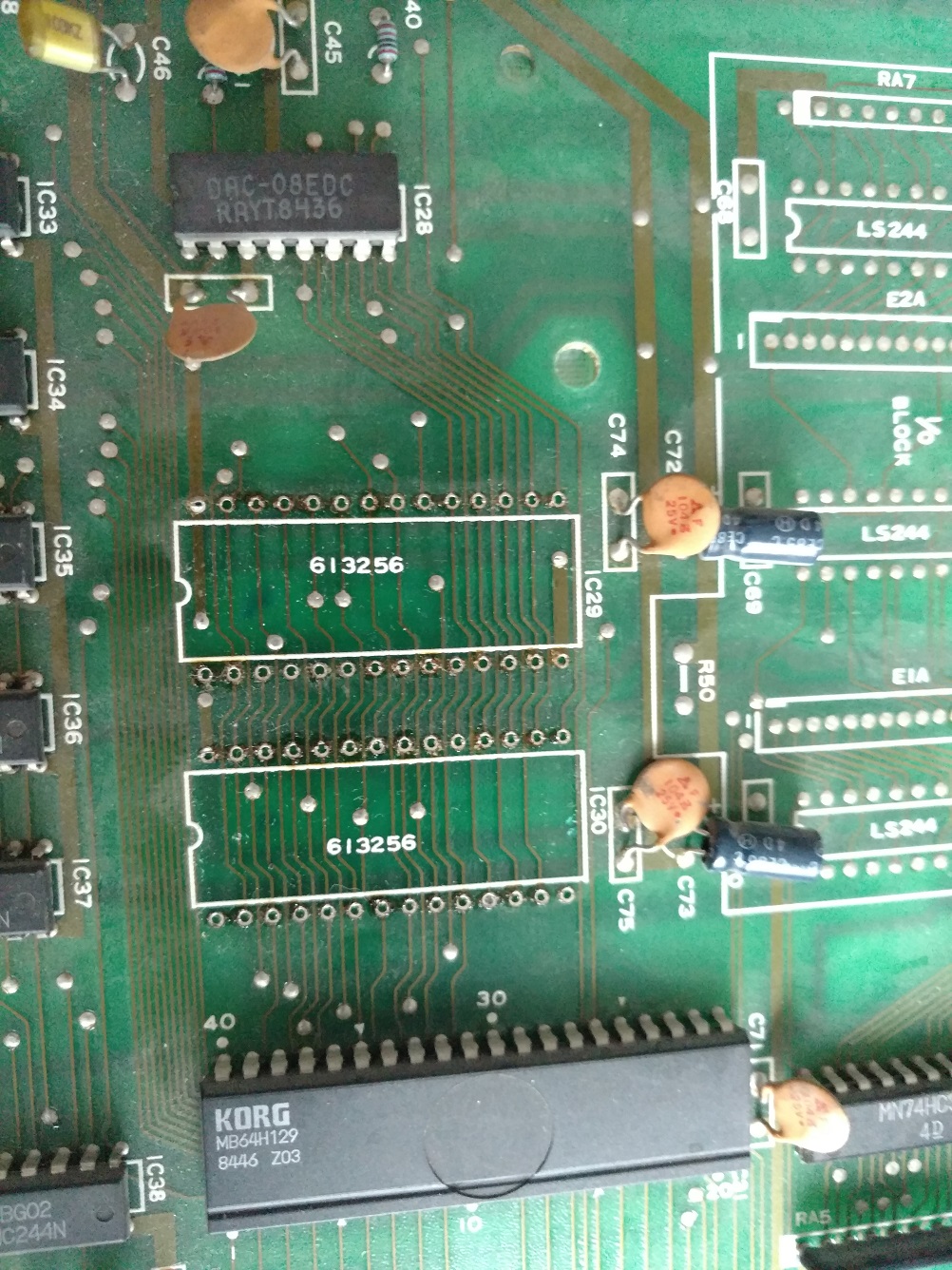

Mark and one chip de-soldered
Both chip's de-soldered

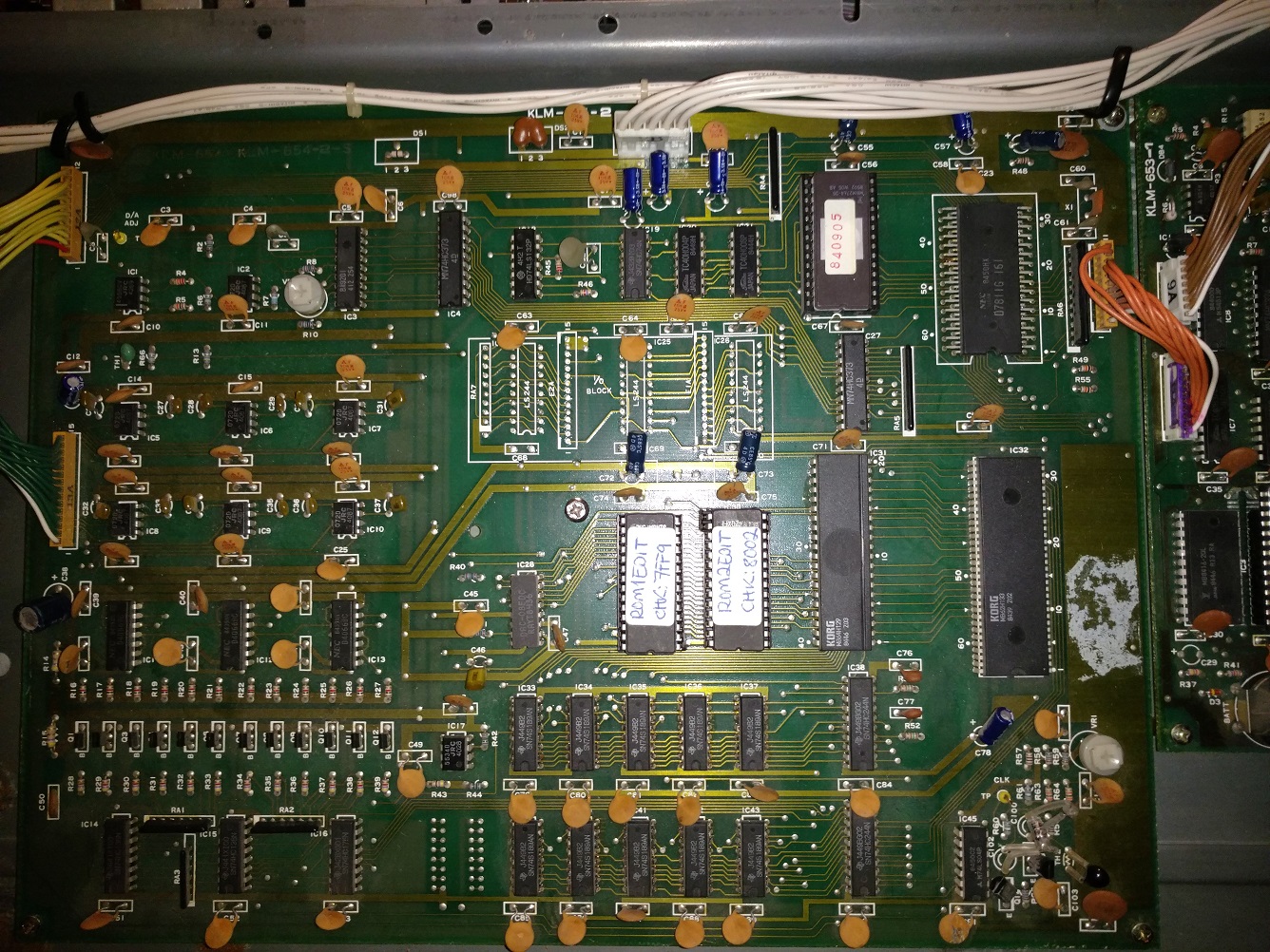

Finished

Korg DW-6000 - manual
Korg DW-6000 - service manual

Update 2024-02-25:

I have in beginning of 2020 stumbled over Mateusz Kolanski waveform mod which adds 64 waveforms to DW6000.

I got his PCB with firmware hack to add a new parameter (14) to be able to change waveform-bank.

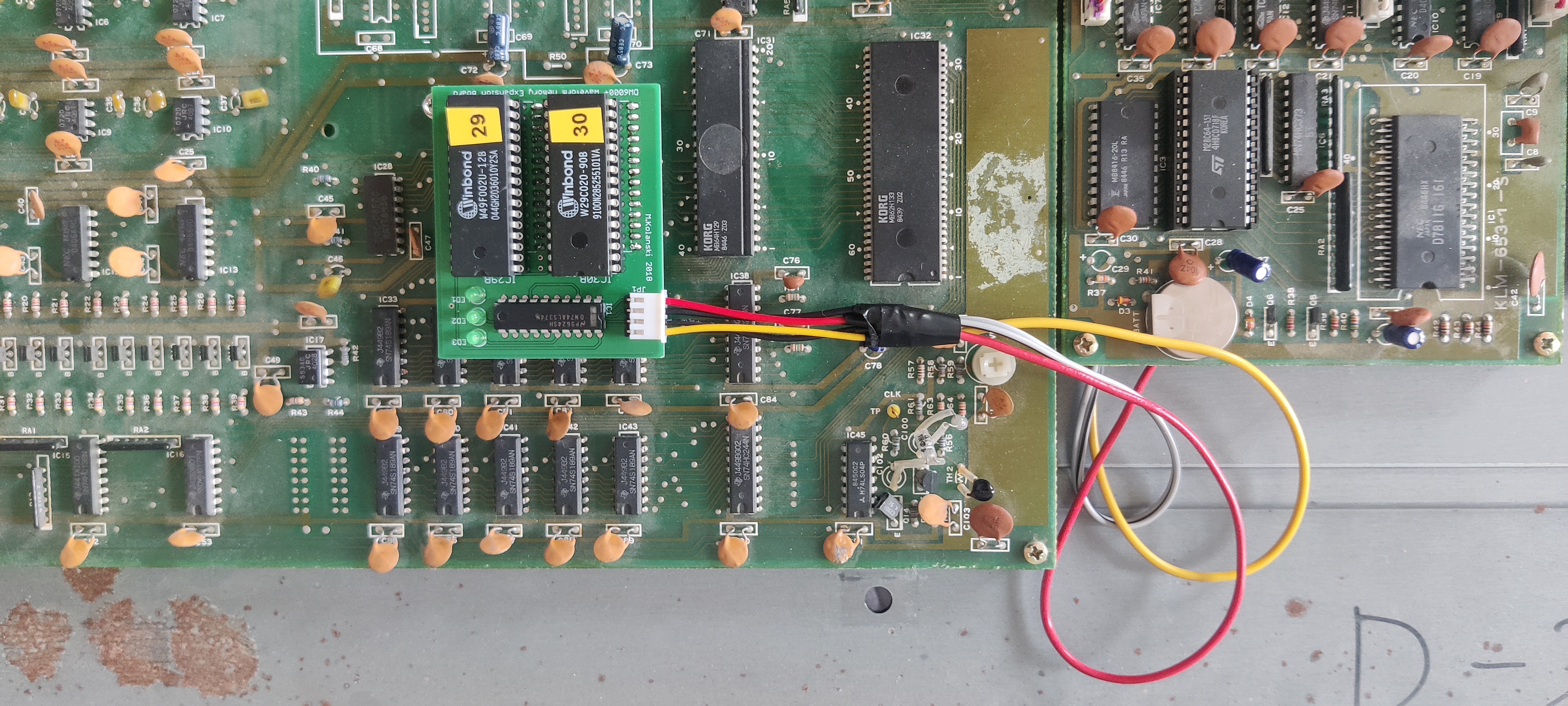

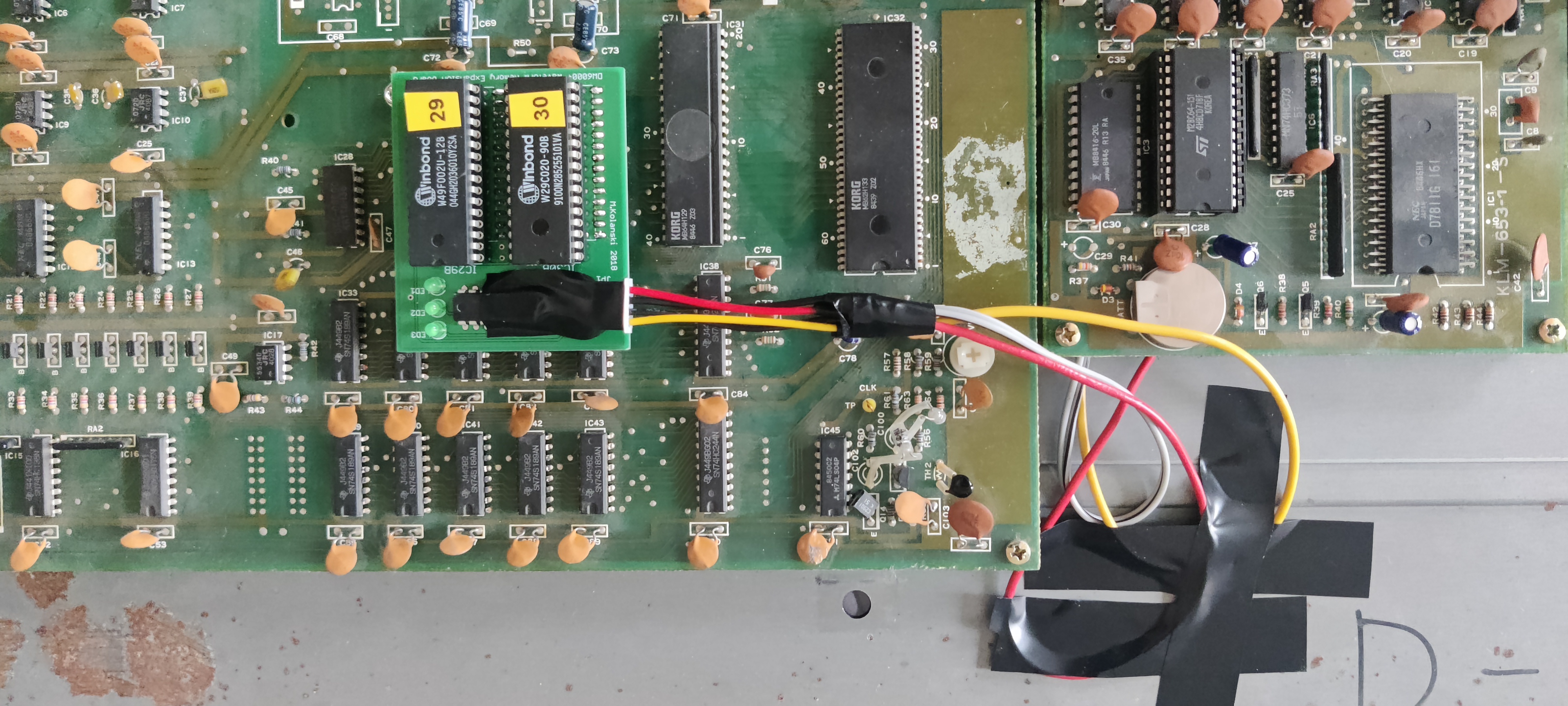

Korg DW-6000 waveform-mod installed
Korg DW-6000 waveform-mod installed - fixed

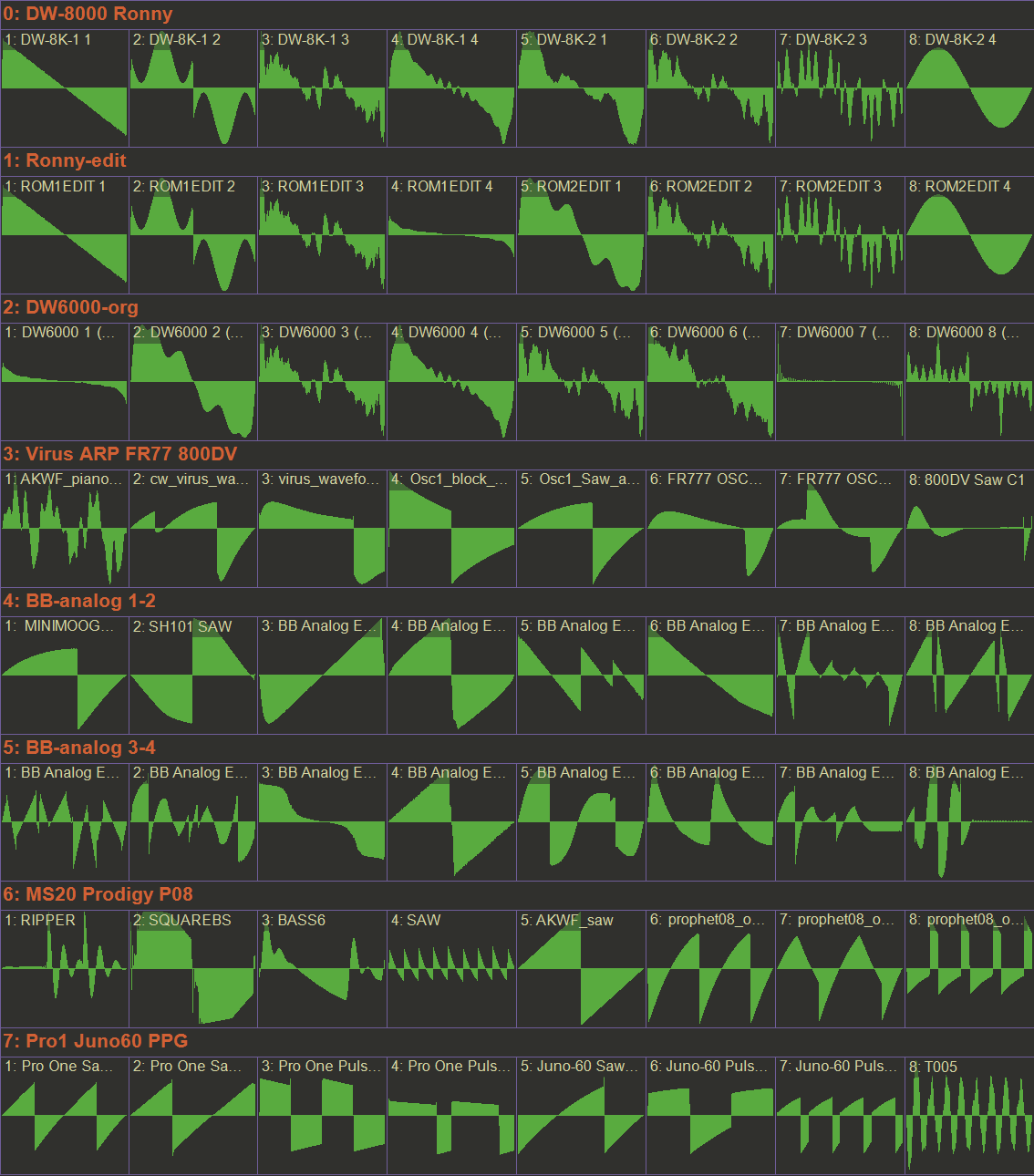

Korg DW-6000 - waveforms

Waveforms:
Bank-1: DW8000 ROM-1 & ROM-2.
Bank-2: My mixture of DW6000 and DW8000.
Bank-3: DW6000 original ROMs.
Bank-4 to 8: A collection from different machines.

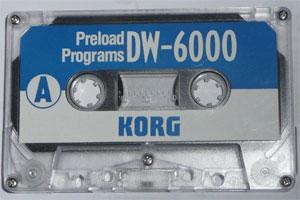

My tape of factory presets:
